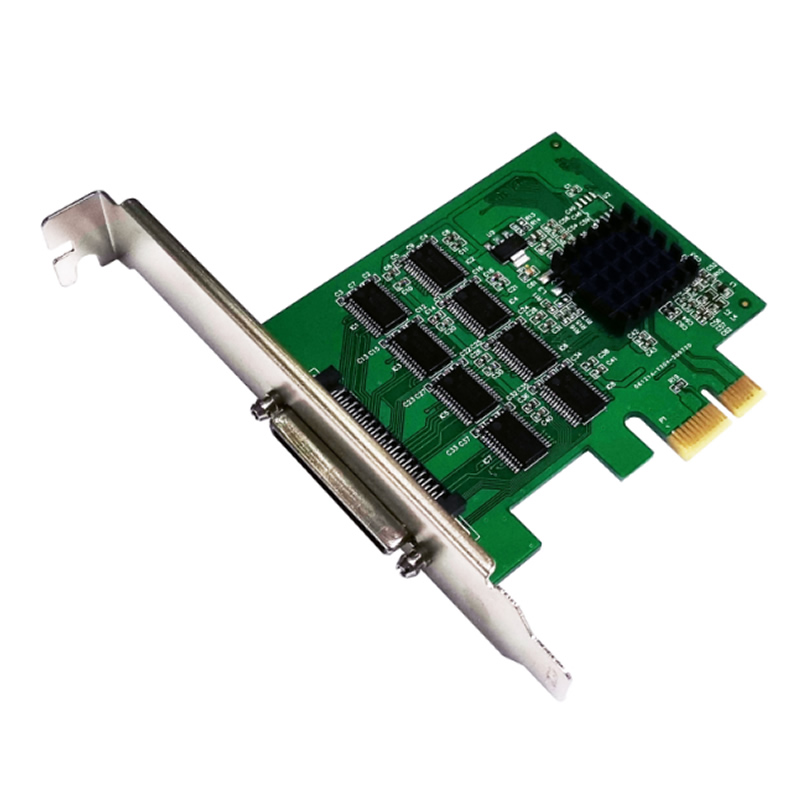

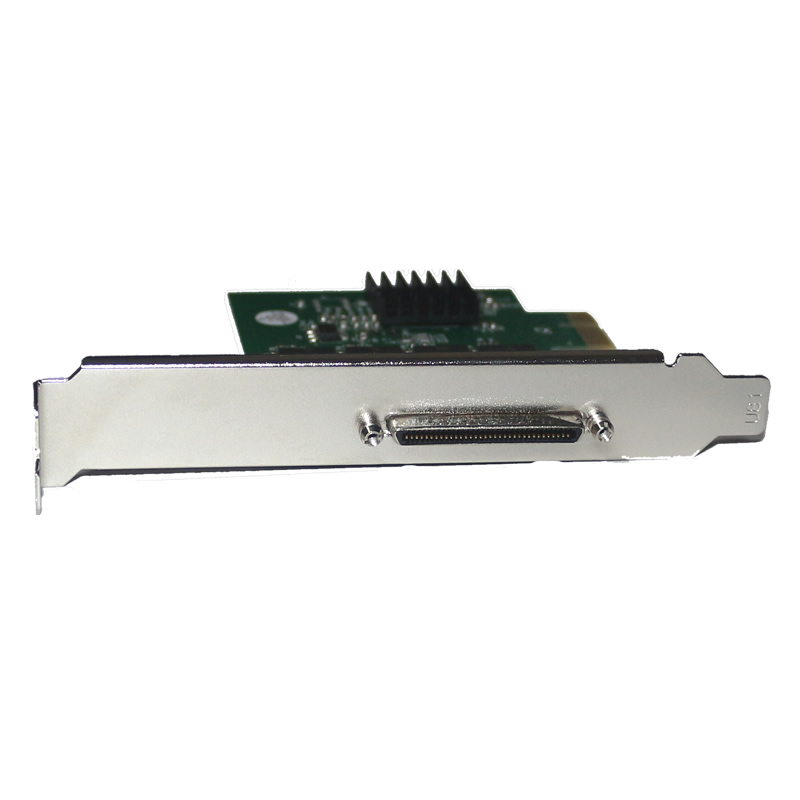

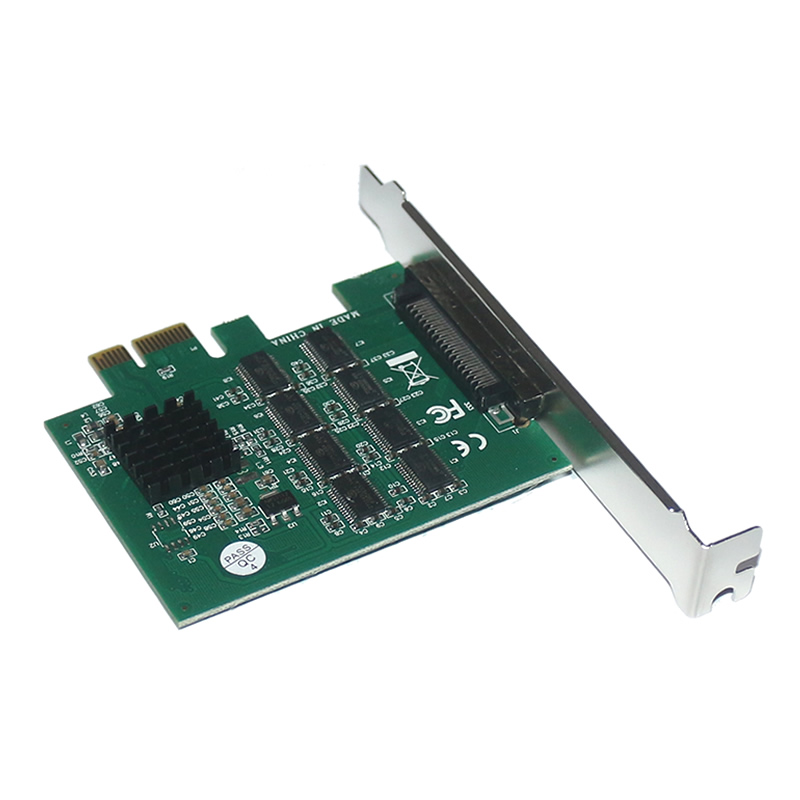

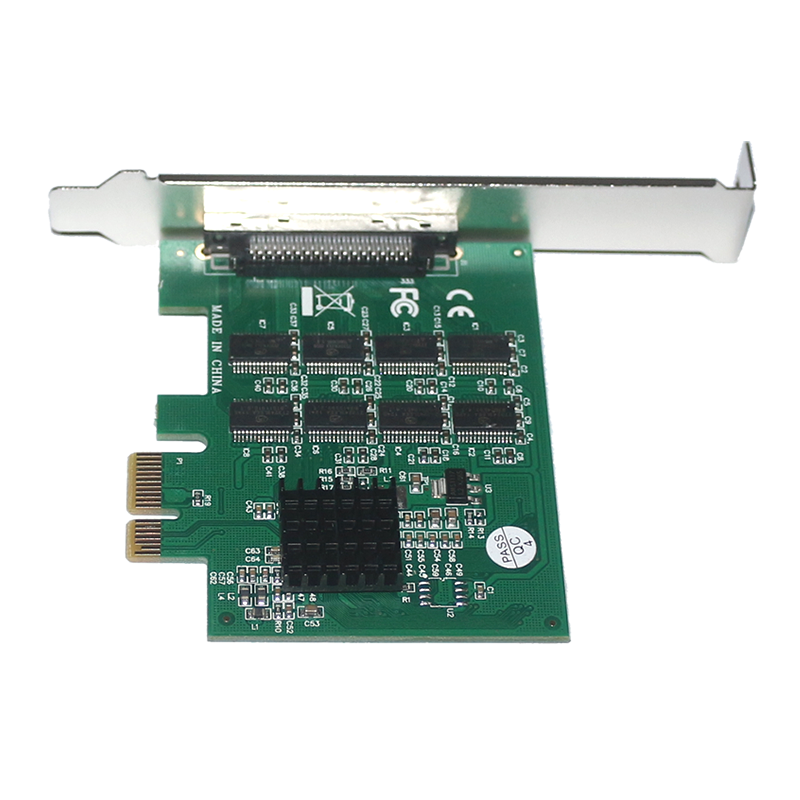

8口RS232 PCI-E高速多串口卡 OX-MSC618
8口RS232 PCI-E高速多串口卡 OX-MSC618
8口RS232 PCI-E高速多串口卡 OX-MSC618
8口RS232 PCI-E高速多串口卡 OX-MSC618
8口RS232 PCI-E高速多串口卡 OX-MSC618

8口RS232 PCI-E高速多串口卡 OX-MSC618

?X1 link dual simplex .2.5Gbps in each direction
?Supports x1,x2,x4,x8 ,x16(lane)PCI Express slots
?Supports with 8-Port RS232
?16 multi-purpose inputs/outputs(MPIOs)
?16-bit general purpose timer/counter
?Up to 31.25Mbps serial data rate
?Parity check: Even/odd/mark/space/none
?256-byte TX and RX FIFOs
?TX/RX FIFO level counters
?Infrare (IrDA 1.1) data encoder/decoder
?Operating temperature range:-40 to 85℃

       The PCI Express RS232 Multi-Port I/O card is used EXAR’s high performance chipset 17V358,it is compliant to PCIe 2.0 Gen 1(2.5GT/s),and it has eight serial port  each port has many enhanced features such as the 256-bytes TX and RX FIFOs, Programmable Fractional Baud Rate Generator, Automatic Hardware or Software Flow control, it is complete to used for Point-of-Sale systems, Remote Access Servers, and factory Automation etc.


Specification

● Compliant with PCI Express Specification Revision 2.0

● X1 link dual simplex .2.5Gbps in each direction

● Supports x1,x2,x4,x8 ,x16(lane)PCI Express slots

● Supports with 8-Port RS232

● 16 multi-purpose inputs/outputs(MPIOs)

● 16-bit general purpose timer/counter

● Up to 31.25Mbps serial data rate

● Data bits:5,6,7 or 8

● Stop bits:1,1.5,2

● Parity check: Even/odd/mark/space/none

● Flow control :none, hardware and Xon/Xoff

● 256-byte TX and RX FIFOs

● TX/RX FIFO level counters

● Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis

● Multi-drop with Auto Address detection

● Infrare (IrDA 1.1) data encoder/decoder

● Operating temperature range:-40 to 85℃

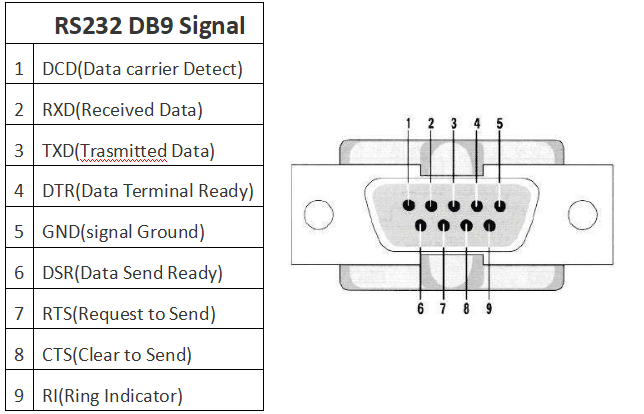

Hardware Signal:
